PEEK作為一種先進的工程塑料,因其擁有良好的機械加工性、阻燃、無毒、耐磨損、耐腐蝕等特性,在減重、有效延長部件使用壽命、優化部件利用等方面均發揮著重要作用。
30%玻璃纖維+70%PEEK,玻璃纖維在組分中起到增強的作用,而本身不導電的特點適合在絕緣要求高和剛性強的材料中使用。

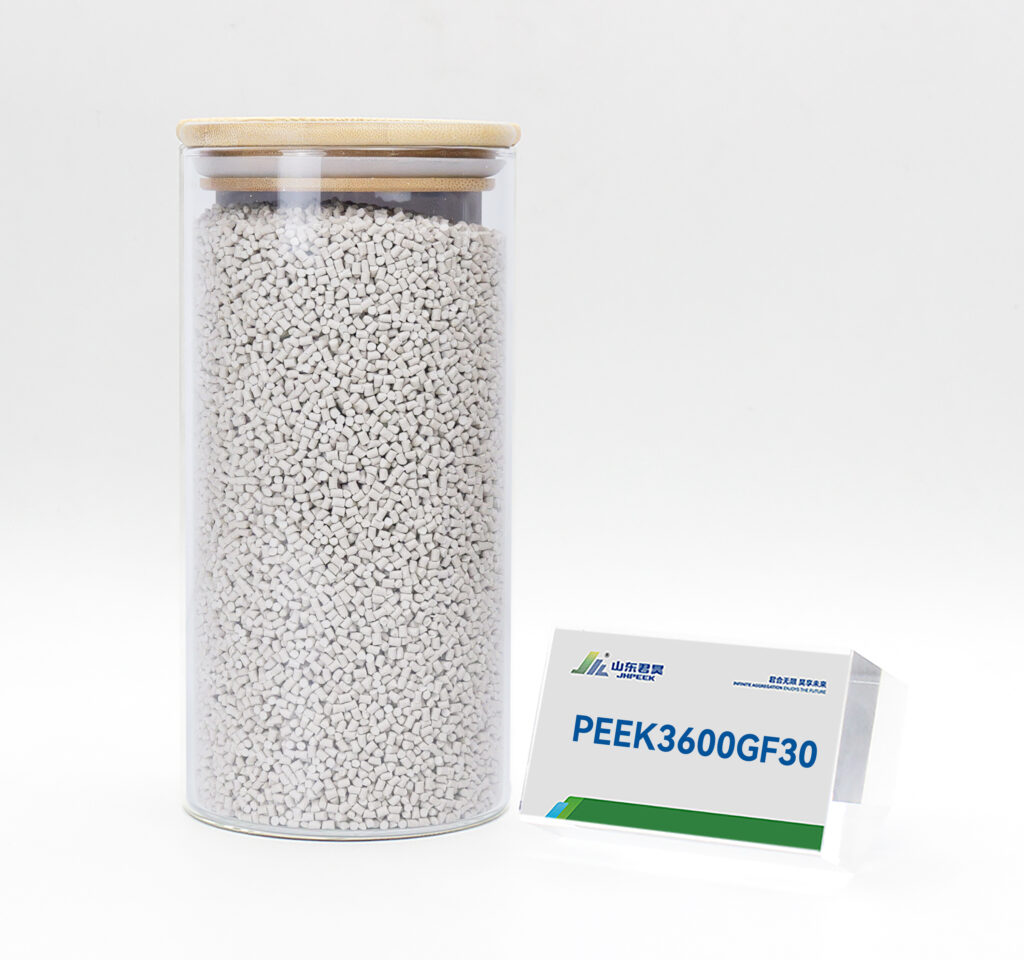

PEEK3600GF30屬于高等流動性的牌號粒子,可用于注塑的方式進行生產薄壁件產品。
項目
(Item) |
測試標準或儀器 (Test Standard or Instrument) |
單位
(Unit) |
PEEK3600GF30 |
含30%玻纖(PEEK+70%Glass fiber) | |||
拉伸強度(23℃)
Tensile strength(23℃) |
ISO527-2/1B/50 | MPa | 180 |
拉伸模量(23℃)
Tensile modulus(23℃ |
ISO527-2/1B/51 | GPa | 12.5 |
拉伸延伸率(23℃)
Tensile elongation(23℃) |
ISO527-2/1B/50 | % | 2.5 |
彎曲強度(23℃)
Bending strength(23℃) |
ISO 178 | MPa | 273 |
彎曲模量(23℃)
Bending modulus(23℃) |
ISO 178 | GPa | 11.5 |
壓縮強度(23℃)
Compressive strength(23℃) |
ISO 604 | MPa | 247 |
簡支梁沖擊強度( 無缺口)
Charpy tched impact strength( no gap) |
ISO 179/U | KJ/m2 | 50 |
懸臂梁沖擊強度(缺口)
Lzod impact strength |
ISO 180/A | KJ/m2 | 9 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標?。↖f you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
項目
(Item) |
測試標準或儀器
(Test Standard or Instrument) |
單位
(Unit) |
PEEK3600GF30 |
含30%玻纖(PEEK+30%Glass fiber) | |||
熔點
Melting point |
DSC | ℃ | 343 |
熱變形溫度
Distortion temperature |
ISO 75-1/-2 | ℃ | 330 |
連續使用溫度
Continuous using temperature |
UL 74685 | ℃ | 260 |
熱膨脹系數
coefficient of thermal expansion |
ASTM D696 | ppm K -1 | 18 |
易燃性等級
Flammable level |
UL 94 | / | V-0 |
導熱系數
Thermal conductivity |
ISO 22007 | W/(m·K) | 0.30 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標?。↖f you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
項目
(Item) |
測試標準或儀器
(Test Standard or Instrument) |
單位
(Unit) |
PEEK3600GF30 |
含30%玻纖(PEEK+30%Glass fiber) | |||
介電強度
Dielectric strength |
IEC 60243-1 | KV/mm | 17 |
介電常數
Dielectric constant |
IEC 60250 | – | 3.3 |
表面電阻
Surface resistance |
IEC 61340 | Ω | 1013 |
損耗介質
Lossy medium |
IEC 60251 | – | 0.005 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標?。↖f you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
項目
(Item) |
測試標準或儀器
(Test Standard or Instrument) |
單位
(Unit) |
PEEK3600GF30 |
含30%玻纖(PEEK+30%Glass fiber) | |||
顏色
Color |
– | 本色、灰黃色
Natural |
|
實密度
Density |
ISO 1183 | g/cm3 | 1.5 |
吸水率 (25℃.24Hrs)
Water Abs. (25℃.24Hrs) |
ISO 62 | % | 0.05 |
成型收縮率(25-24℃)
Mould shrinking percentage |
3mm厚度,170℃條件流動方向
3mm,170℃, Flow direction |
% | 0.3 |
垂直于流動方向
Perpendicular to flow direction |
% | 0.8 | |
泊松比
Simeom Denis Poisson |
ISO 527-2 | 0.35 | |
洛氏硬度
Rockwell hardness |
GB/T 3398.2 | HRR | 120 |
摩擦系數
Friction coefficient |
ASTM D3702 | μ | 0.35-0.4 |
熔融指數
Melt flow index |
ISO1133 | g/10min | 14 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標?。↖f you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
