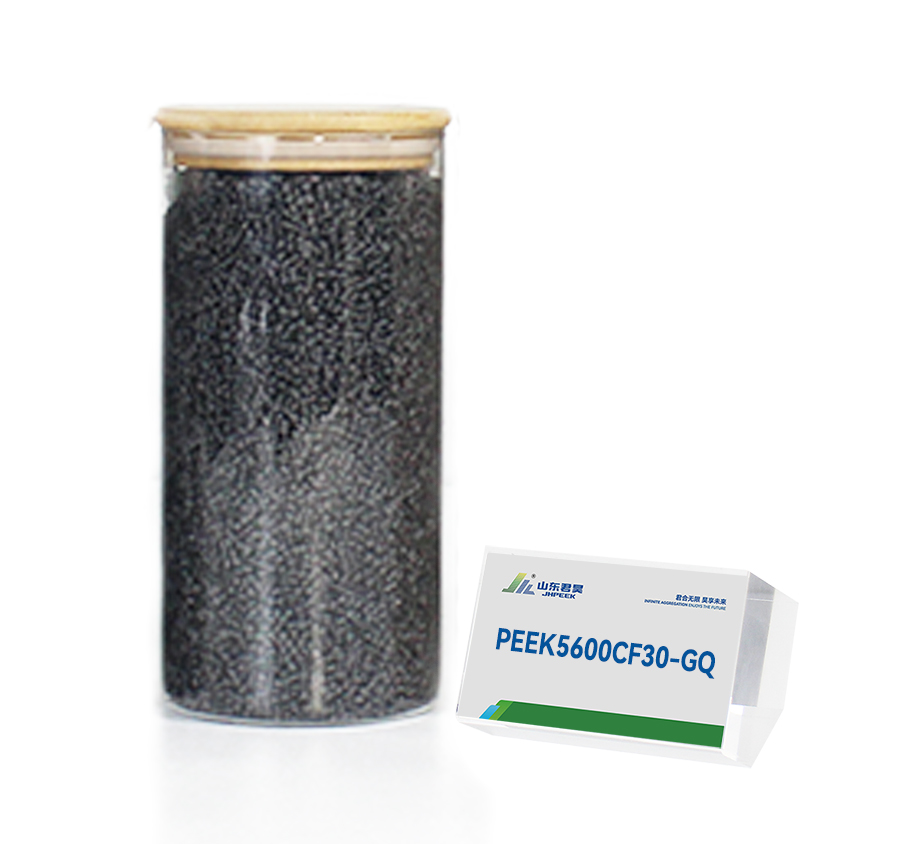

PEEK5600CF30-GQ(黑色)該材料填充30%高強碳纖維增強,比PEEK5600CF30有更好的機械性能(較高的模量、機械強度)和更耐磨。
PEEK5600CF30-GQ粒子可用于注塑、擠出的方式進行生產和加工。
依托此前在PEEK行業的經驗積累,公司進軍PEEK樹脂的聚合生產,為國內PEEK零件及型材提供更多的選擇以及更強的保障,為國內PEEK的發展創造優勢條件。同時通過客戶對型材和零件的研發生產及反饋,也會促進君昊原料樹脂聚合的改進。
項目
(Item) |
測試標準或儀器 (Test Standard or Instrument) |
單位
(Unit) |
PEEK5600CF30-GQ |
含30%碳纖(PEEK+30%Carbon fiber) | |||
拉伸強度(23℃)
Tensile strength(23℃) |
ISO527-2/1B/50 | MPa | 260 |
拉伸模量(23℃)
Tensile modulus(23℃ |
ISO527-2/1B/51 | GPa | 24 |
拉伸延伸率(23℃)
Tensile elongation(23℃) |
ISO527-2/1B/50 | % | 1.5 |
彎曲強度(23℃)
Bending strength(23℃) |
ISO 178 | MPa | 390 |
彎曲模量(23℃)
Bending modulus(23℃) |
ISO 178 | GPa | 16 |
簡支梁沖擊強度( 無缺口)
Charpy tched impact strength( no gap) |
ISO 179/U | KJ/m2 | 45 |
懸臂梁沖擊強度(缺口)
Lzod impact strength |
ISO 180/A | KJ/m2 | 9 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標?。↖f you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
項目
(Item) |
測試標準或儀器
(Test Standard or Instrument) |
單位
(Unit) |
PEEK5600CF30-GQ |
含30%碳纖(PEEK+30%Carbon fiber) | |||
熔點
Melting point |
ISO11357 | ℃ | 343 |
熱變形溫度
Distortion temperature |
ISO 75a-f | ℃ | 335 |
連續使用溫度
Continuous using temperature |
UL 746B | ℃ | 260 |
熱膨脹系數
coefficient of thermal expansion |
ASTM D696 | ppm K-1 | 5 |
易燃性等級
Flammable level |
UL 94 | / | / |
導熱系數
Thermal conductivity |
ISO /CD22007-4 | W/(m·K) | 0.95 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標?。↖f you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
項目(Item) | 測試標準或儀器
(Test Standard or Instrument) |
單位(Unit) | PEEK5600CF30-GQ |
含30%碳纖(PEEK+30%Carbon fiber) | |||
介電強度
Dielectric strength |
IEC 60243-1 | KV/mm | – |
介電常數
Dielectric constant |
IEC 62631 | – | – |
表面電阻
Surface Resistance |
GB/T 31838.3 | Ω | – |
體積電阻率
Volume Resistivity |
IEC 60093 | Ω·cm | 105 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標!(If you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
項目(Item) | 測試標準或儀器
(Test Standard or Instrument) |
單位(Unit) | PEEK5600CF30-GQ |
含30%碳纖(PEEK+30%Carbon fiber) | |||
顏色
Color |
– | 黑色
Black |
|
實密度
Density |
ISO 1183 | g/cm3 | 1.4 |
吸水率 (25℃.24Hrs)
Water Abs. (25℃.24Hrs) |
ISO 62-1 | % | 0.04 |
成型收縮率(25-24℃)
Mould shrinking percentage |
平行于流動方向
Parallel to ?flow direction |
% | 0.1 |
垂直于流動方向
Perpendicular to?flow direction |
% | 0.5 | |
泊松比
Simeom Denis Poisson |
ISO 527-2 | 0.35 | |
洛氏硬度HRE
Rockwell hardness |
ISO 2039.2 | 80 | |
摩擦系數
Friction coefficient |
ASTM D3702 | 100N-120rpm | 0.15-0.25 |
熔融指數
Melt flow index |
ISO1133 | g/10min | 1.5 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標?。↖f you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
