                            PEEK因其分子中含有大量苯環結構而表現出非常優越的綜合性能。
PEEK(聚醚醚酮)樹脂是一種高性能特種熱塑性材料,是商業化聚芳醚酮類樹脂中重要的品種之一-。目前, 聚醚醚酮以其優異的電氣性能、機械性能、耐高溫性能、耐腐蝕性能等,被廣泛的應用于石油、食品加工、汽車和航空航天等領域。

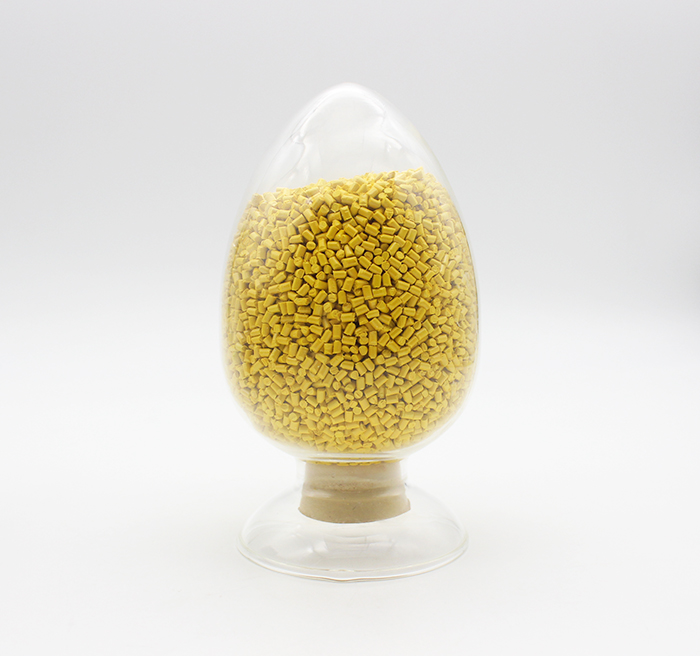

PEEK5600PY是一款中等熔體流動速率的牌號粒子,可用于注塑、擠出的方式進行生產和加工。由黃色色母改性而成,粒子的力學性能、熱性能、電性能等性能與加色母改色前的相同牌號PEEK5600G粒子相同。
| 項目
 (Item)  |
測試標準或儀器 (Test Standard or Instrument)  |
單位
 (Unit)  |
PEEK5600PY |
| 黃色色母改性PEEK | |||
| 拉伸強度(23℃)
 Tensile strength(23℃)  |
ISO527-2/1B/50 | MPa | 95 |
| 拉伸模量(23℃)
 Tensile modulus(23℃  |
ISO527-2/1B/51 | GPa | 4.0 |
| 拉伸延伸率(23℃)
 Tensile elongation(23℃)  |
ISO527-2/1B/50 | % | 25 |
| 彎曲強度(23℃)
 Bending strength(23℃)  |
ISO 178 | MPa | 169 |
| 彎曲模量(23℃)
 Bending modulus(23℃)  |
ISO 178 | GPa | 4.2 |
| 壓縮強度(23℃)
 Compressive strength(23℃)  |
ISO 604 | MPa | 125 |
| 簡支梁沖擊強度( 無缺口)
 Charpy tched impact strength( no gap)  |
ISO 179/U | KJ/m2 | 150(No break) |
| 懸臂梁沖擊強度(缺口)
 Lzod impact strength  |
ISO 180/A | KJ/m2 | 6 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標!(If you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
| 項目 (Item)  |
測試標準或儀器
 (Test Standard or Instrument)  |
單位 (Unit)  |
PEEK5600PY |
| 黃色色母改性PEEK | |||
| 熔點
 Melting point  |
DSC | ℃ | 343 |
| 熱變形溫度
 Distortion temperature  |
ISO 75-1/-2 | ℃ | 155 |
| 連續使用溫度
 Continuous using temperature  |
UL 74685 | ℃ | 260 |
| 熱膨脹系數
 coefficient of thermal expansion  |
ASTM D696 | ppm K-1 | 46 |
| 易燃性等級
 Flammable level  |
UL 94 | / | V-0 |
| 導熱系數
 Thermal conductivity  |
ISO 22007 | W/(m·K) | 0.28 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標?。↖f you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
| 項目 (Item)  |
測試標準或儀器
 (Test Standard or Instrument)  |
單位 (Unit)  |
PEEK5600PY |
| 黃色色母改性PEEK | |||
| 介電強度
 Dielectric strength  |
IEC 60243-1 | KV/mm | 24 |
| 介電常數
 Dielectric constant  |
IEC 60250 | – | 3.2 |
| 表面電阻
 Surface Resistance  |
IEC 61340 | Ω | 1013 |
| 損耗介質
 Lossy medium  |
IEC 60251 | – | 0.004 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標?。↖f you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
| 項目
 (Item)  |
測試標準或儀器
 (Test Standard or Instrument)  |
單位
 (Unit)  |
PEEK5600PY |
| 黃色色母改性PEEK | |||
| 顏色
 Color  |
– | 黃色
 Yellow  |
|
| 實密度
 Density  |
ISO 1183 | g/cm3 | 1.29±0.01 |
| 吸水率 (25℃.24Hrs)
 Water Abs. (25℃.24Hrs)  |
ISO 62 | % | 0.05 |
| 成型收縮率(25-24℃)
 Mould shrinking percentage  |
3mm厚度,170℃條件流動方向
 3mm,170℃, Flow direction  |
% | 1.0 |
| 垂直于流動方向
 Perpendicular to flow direction  |
% | 1.3 | |
| 泊松比
 Simeom Denis Poisson  |
ISO 527-2 | 0.4 | |
| 洛氏硬度
 Rockwell hardness  |
GB/T 3398.2 | HRR | 118 |
| 摩擦系數
 Friction coefficient  |
ASTM D3702 | μ | 0.30-0.50 |
| 熔融指數
 Melt flow index  |
ISO1133 | g/10min | 10 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標!(If you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
