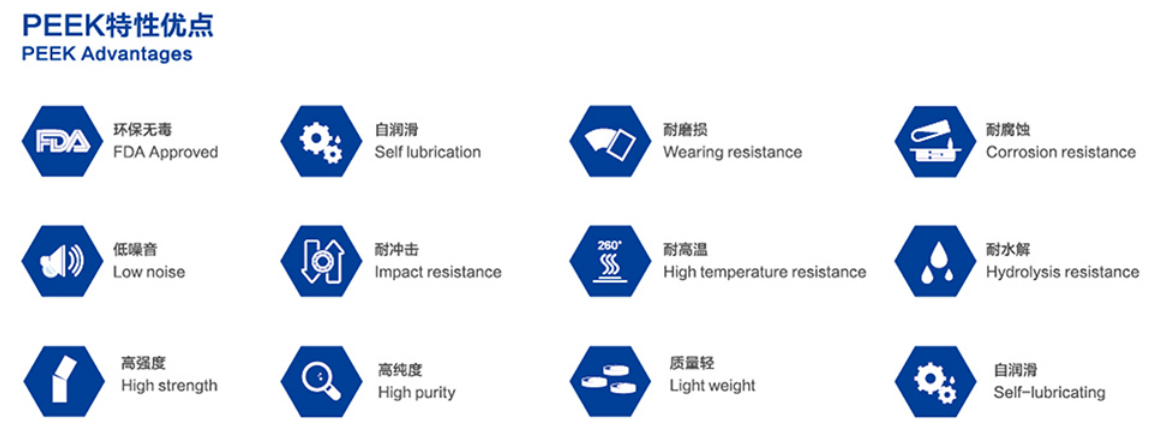

PEEK作為一種先進的工程塑料,因其擁有良好的機械加工性、阻燃、耐磨損、耐腐蝕等特性,在減重、有效延長部件使用壽命、優化部件利用等方面均發揮著重要作用。
PEEk7600G是一款低等熔體流動速率的牌號粒子,可用于注塑、擠出的方式進行生產和加工,更加適合于韌性比較高的產品,例如PEEK螺絲、閥門等。
依托此前在PEEK行業的經驗積累,公司進軍PEEK樹脂的聚合生產,為國內PEEK零件及型材提供更多的選擇以及更強的保障,為國內PEEK的發展創造優勢條件。同時通過客戶對型材和零件的研發生產及反饋,也會促進君昊原料樹脂聚合的改進。
項目
(Item) |
測試標準或儀器 (Test Standard or Instrument) |
單位
(Unit) |
PEEK7600G |
純樹脂(100%PEEK) | |||
拉伸強度(23℃)
Tensile strength(23℃) |
ISO527-2/1B/50 | MPa | 95 |
拉伸模量(23℃)
Tensile modulus(23℃ |
ISO527-2/1B/51 | GPa | 3.4 |
拉伸延伸率(23℃)
Tensile elongation(23℃) |
ISO527-2/1B/50 | % | 40 |
彎曲強度(23℃)
Bending strength(23℃) |
ISO 178 | MPa | 163 |
彎曲模量(23℃)
Bending modulus(23℃) |
ISO 178 | GPa | 3.8 |
壓縮強度(23℃)
Compressive strength(23℃) |
ISO 604 | MPa | 125 |
簡支梁沖擊強度( 無缺口)
Charpy tched impact strength( no gap) |
ISO 179/U | KJ/m2 | 160(No break) |
懸臂梁沖擊強度(缺口)
Lzod impact strength |
ISO 180/A | KJ/m2 | 9 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標?。↖f you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
項目 (Item) |
測試標準或儀器
(Test Standard or Instrument) |
單位 (Unit) |
PEEK7600G |
純樹脂(100%PEEK) | |||
熔點
Melting point |
DSC | ℃ | 343 |
熱變形溫度
Distortion temperature |
ISO 75-1/-2 | ℃ | 153 |
連續使用溫度
Continuous using temperature |
UL 74685 | ℃ | 260 |
熱膨脹系數
coefficient of thermal expansion |
ASTM D696 | ppm K-1 | 46 |
易燃性等級
Flammable level |
UL 94 | / | V-0 |
導熱系數
Thermal conductivity |
ISO 22007 | W/(m·K) | 0.28 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標?。↖f you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
項目(Item) | 測試標準或儀器
(Test Standard or Instrument) |
單位(Unit) | PEEK7600G |
純樹脂(100%PEEK) | |||
介電強度
Dielectric strength |
IEC 60243-1 | KV/mm | 24 |
介電常數
Dielectric constant |
IEC 60250 | – | 3.2 |
表面電阻
Surface resistance |
IEC 61340 | Ω | 1013 |
損耗介質
Lossy medium |
IEC 60251 | – | 0.004 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標!(If you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
項目 (Item) |
測試標準或儀器
(Test Standard or Instrument) |
單位 (Unit) |
PEEK7600G |
純樹脂(100%PEEK) | |||
顏色
Color |
– | 本色
Natural |
|
實密度
Density |
ISO 1183 | g/cm3 | 1.29±0.01 |
吸水率 (25℃.24Hrs)
Water Abs. (25℃.24Hrs) |
ISO 62 | % | 0.05 |
成型收縮率(25-24℃)
Mould shrinking percentage |
3mm厚度,170℃條件流動方向
3mm,170℃, Flow direction |
% | 1.0 |
垂直于流動方向
Perpendicular to flow direction |
% | 1.3 | |
泊松比
Simeom Denis Poisson |
ISO 527-2 | 0.4 | |
洛氏硬度
Rockwell hardness |
GB/T 3398.2 | HRR | 118 |
摩擦系數
Friction coefficient |
ASTM D3702 | μ | 0.30-0.35 |
熔融指數
Melt flow index |
ISO1133 | g/10min | 5 |
1、典型數值為注塑指標。如有需要可來電咨詢我司技術部索要更詳細的技術指標?。↖f you need other parameter, please contact us!)
2、該性能指標不可作為材料驗收標準。(This performance index cannot be used as acceptance criteria.)
